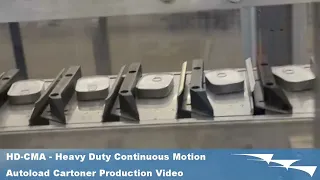

Heavy Duty Continuous Motion Cartoner
The HD-CMA – Heavy Duty Continuous Motion Autoload Cartoner brings significant productivity gains to your manufacturing line. The HD-CMA’s fall through design means product spills will fall directly on the floor, which allows for easier cleaning and wipe down. The servo drives on this cartoner offer a reduction in mechanical components, thus minimizing overall footprint and providing smooth operation.

The servo drives also provide accurate feedback and fault diagnostics as well as assisting with changeover for different carton sizes. High speeds are also achievable through the cartoner’s robust frame and rotary feeder. On certain cartoner pitches, the HD-CMA can achieve over 300 cartons per minute. Numerous options can be added to the HD-CMA, including leaflet inserts, date coding, extended magazine, and open flap detection. Discharge belts are also included to reduce carton marking.

Key Features

Servo Driven Rotary Feeder

Can handle speeds up to 350 cpm.

Customized Infeed Systems

Automatically orients bottles into the correct loading position using high-speed cameras and mechanical devices.

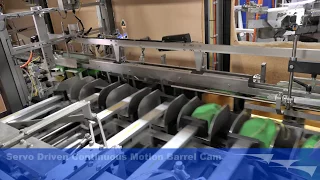

Servo Driven Barrel Cam Loading System

Bosch-Rexroth Linear Rail Blocks and Allen Bradley Servo Drive used to ensure minimal wear and high performance.

Intuitive Allen Bradley PanelView HMI

Easily troubleshoot machine problems, track machine performance, and set-up new sizes.

Heavy Duty Frame

Designed to operate in a demanding production environment.

Optional Features

Extended Magazines

Limits operator intervention.

Stacked Chain Arrangement

Allows for small depth cartons.

Overhead Squaring Chain

Ensures cartons with long widths are accurately squared, improving overall packaging quality.

Prebreak Carton Opening

Handles square cartons with ease as the carton will be prebroken slightly before placement into the main chain conveyor.

All Axis Servo Changeover

Push button servo driven changeover technology allows extremely quick changeover.


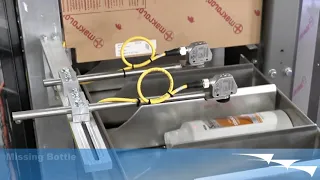

Bottles of Product

High-speed bottle cartoning applications with optional leaflet feeder.

Light Bulbs

Unique cartoning solutions for light bulbs with speeds up to 320 cpm.

Rolls of Product

Extended depth frames are available to handle rolls of product over 15".

Bags of Product

Dual lane infeeds from dual VFFS are available.

Flow Wrap Product

Dual lane infeeds from dual WFFS are available.

Bottle Line Running at 250 cpm

Cannabis Product Application

High-Speed Bottle Application

300 CPM Single-Lane Bottle Application

Hardware with Fasteners Application

All Servo Changeover Bottle Application

Aluminum Can Cartoner at 250 cpm

Pharma Cartoner for Tubes with Leaflet Feeder
