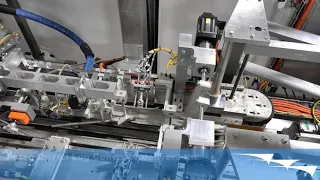

The CS-TOP – Vertical Carton/Case Top Sealer is a robust and heavy duty top sealer that can ensure high packaging efficiency and operator satisfaction. Cases or cartons come from upstream equipment and are seamlessly transferred to the top sealer. A Festo pneumatic or AB Servo kicker ploughs the trailing minor flap while folding rails close the leading minor flap and major flaps. The top sealer will then close the top of the case via glue or tape.

The CS-TOP uses a Nordson ProBlue Adhesive Unit for glue closures and a DEKKA tape unit for tape closures. The unit features an Allen Bradley PLC unit for improved fault diagnostics, set up, and changeover. Also, the top sealer uses servo motors on all major actuated components. The CS-TOP has the option of fully automatic changeover through the use of AB Servo Motors. Improve your line efficiency with the robust and efficient CS-TOP.

Key Features

Custom Infeed Systems

Can integrate with a wide range of upstream machinery.

Servo Driven Changeover

Can complete all dimensional changeovers in under one minute.

RSC Cases or Chipboard Cartons

RSC cases or chipboard cartons can be run on the CS-TOP.

Intuitive Allen Bradley PanelView HMI

Intuitive screens allow access to servo motor control, recipe changes, pack pattern changes and more.

Glue or Tape Closure

Can run either glue or tape style RSCs.

Optional Features

Open Flap Reject

Improve overall efficiency with an open flap reject system.

Double Walled Cases

Top seal double walled cases with the CS-TOP.

Mounting Locations for Optional Equipment

Printers, labelers, and bar code readers can all be integrated.

Virtual Private Network

Allow programmers to access the PLC to make necessary changes through a VPN.

Swing Arm OP Station

Swing arm operator station gives operators better optics when troubleshooting.

Applications

Chipboard Cartons

Can top seal large sized chipboard cartons.

RSC Cases

Easily top seal RSC cases with the CS-TOP.

Double Wall Cases

Handle double wall cases with the CS-TOP.

Auto-bottom Cartons

Top seal difficult to control auto-bottom cartons.

Window Style Cartons

Window style cartons can also be top sealed on the CS-TOP.
