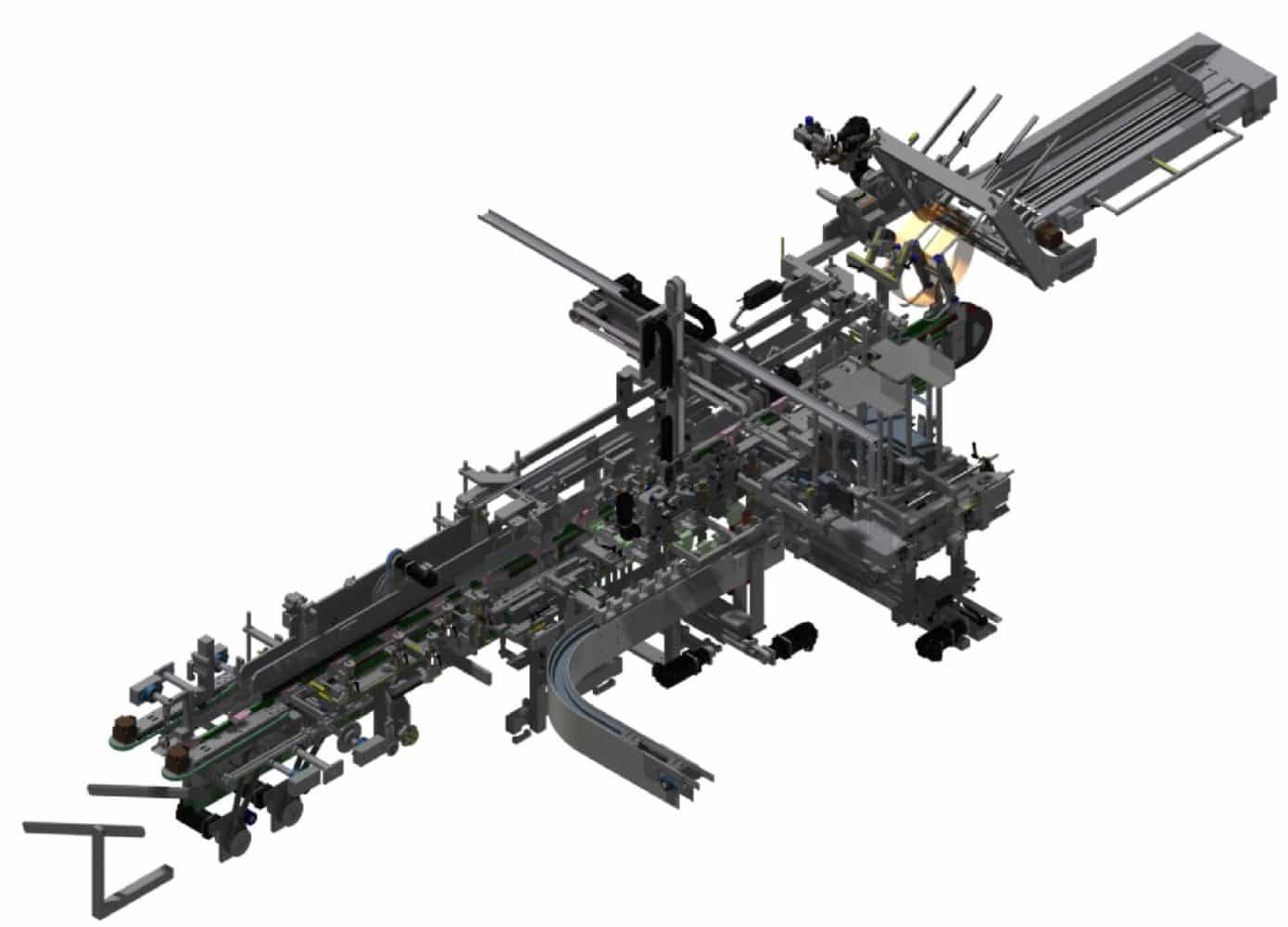

HD-IMA – HEAVY DUTY INTERMITTENT MOTION AUTOLOAD CARTONER

The HD-IMA – Heavy Duty Intermittent Motion Autoload Cartoner is a robust and heavy duty cartoner that can handle applications where product handling is essential for consistent operation. The HD-IMA’s modular design allows for a wide variety of infeed systems to be used on the system. The HD-IMA also features the SureLoad. The Sure-Load is a carton closing rail system that ensures product does not have the opportunity to fall out of the carton during flap closing operation. With this feature, you can run multi-pack cartons at a very high-speed without the fear of falling product. With the ability to handle bags, pouches, flow-wraps and many other applications, the HD-IMA provides the ultimate flexibility for all your cartoning needs.

Key Features

Unique Multi-Pack Loading Systems

Engineered loading systems to handle bulk or multi-pack cartons.

Loading Funnels with Overhead Confiners

Loading Funnels with servo driven pushers end load product into the carton.

Pick, Group and Load End Effector

Innovative end effector to pick, group, and load to ensure product is on the correct pitch.

Intuitive Allen Bradley PanelView HMI

Stacked Chain Arrangement

Allows for very small depth cartons to run on the system.

Optional Features

Sure-Load™ Carton Closing

Ensures product will not fall out of the carton during high-speed indexing.

Modular Design

Labelers, ink or laser jet printers, scales, and numerous other secondary equipment can be integrated.

Overhead Squaring Chain

Ensures cartons with long widths are accurately squared, improving overall packaging quality.

Prebreak Carton Opening

Handles square cartons with ease as the carton will be prebroken slightly before placement into the main chain conveyor.

All Axis Servo Changeover

Push button servo driven changeover technology allows extremely quick changeover.

Key Features of CE-GRT

Bulk Product

Scales can be added to the HD-IMA to handle bulk product with ease.

Bottles

The HD-IMA can be set up to handle bottles with linears.

Health Products

The HD-IMA can be designed for pharmaceutical and nutraceutical applications.

Stick Packs

Features on the HD-IMA allow for high-speed intermittent motion without the risk of stick packs falling out.

Flow Wrap Product

Seamlessly integrate your upstream flow-wrappers.
