VV-VLM – VECTOR VERTICAL MANUAL LOAD CARTONER

  1. Home
  2.  »
  3. Solutions
  4.  »
  5. Cartoners
  6.  »
  7. Vertical Cartoners
  8.  » VV-VLM

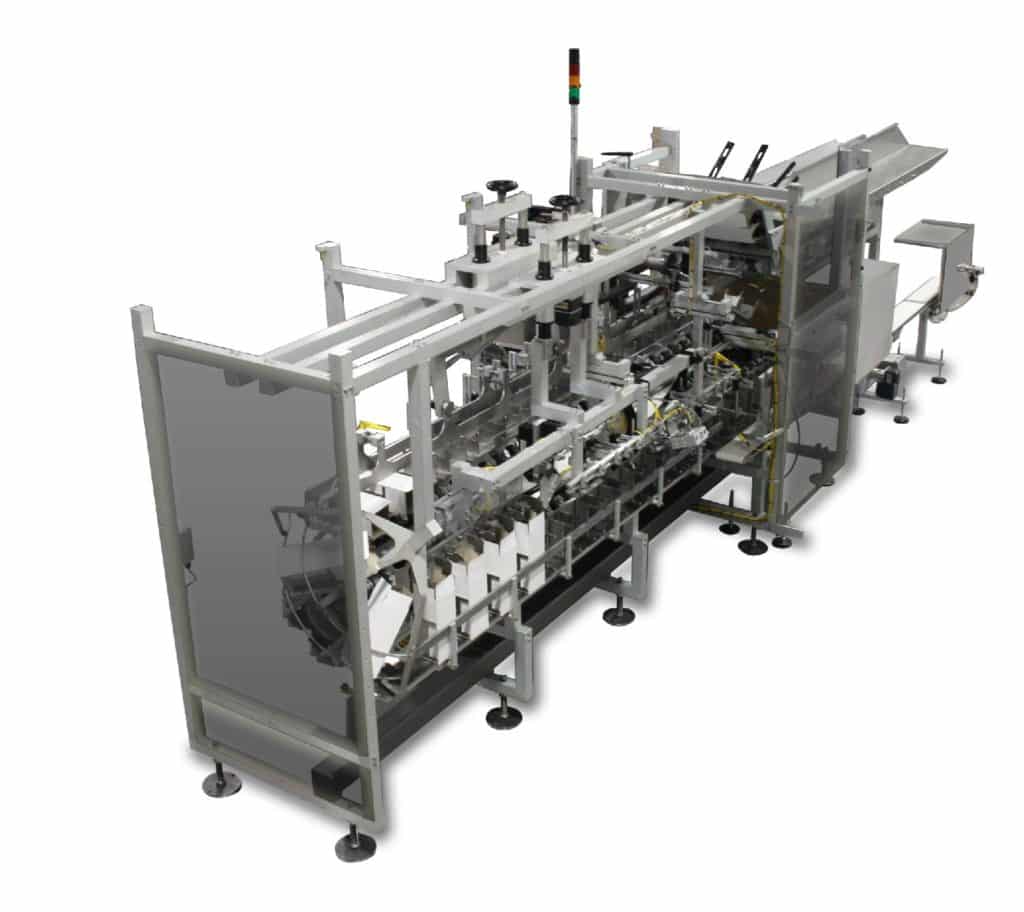

The VV-VLM – Vector Vertical Manuload Cartoner is an innovative product for vertical cartoning. The VV-VLM’s unique design allows a carton to erect horizontally and then manual load vertically. Thus, the VV-VLM combines the ease of vertical product loading with the robust nature of horizontal carton erecting. All the advantages of horizontal and vertical cartoning are attainable with one cartoner: the VV-VLM. The VV-VLM is also a safer solution compared to a manual load horizontal cartoner as there is less risk of finger trapping. The VV-VLM is very useful for companies looking to hand load bags, bottles, vials, household products, and more. All these features make the VV-VLM a cost-effective solution for companies looking for a durable and flexible cartoner.

The VV-VLM also has optional equipment such as 4′ or 8′ extended magazines, servo assist change over on key change over points, and open flap detection. This vertical cartoner comes standard with an Allen Bradley CompactLogix PLC system as well as AB servo motors and drives. Glue, tuck or both are available on this heavy-duty vertical cartoner.

Key Features

Servo Driven Vertical Rotary Feeder

Ensures positive carton openings onto carton carrier conveyor.

Heavy Duty Frame

Ensures stable operation at high speeds and long operating life.

Manual Load Station

Manual Load Station for top load applications.

Intuitive Allen Bradley PanelView HMI

Intuitive screens allow access to servo motor control, recipe changes, machine operation statistics and more.

Innovative Horizontal Carton Erecting and Vertical Top Loading

The VV-VLM combines the ease of vertical product loading with the robust nature of horizontal carton erecting.

Optional Features

Extended Magazines

Available to limit operator intervention.

Open Flap Detection

Cartons with open flaps will automatically be rejected off the line.

Tuck or Glue Style Closure

Capability to run both glue or tuck style cartons.

Prebreak Carton Opening

Handles square cartons with ease as the carton will be prebroken slightly before placement into the main chain conveyor.

All Axis Servo Changeover

Push button servo driven changeover technology allows extremely quick changeover.

Applications

Bags of Product

Low-mid speed bag applications easily handled by the VV-VLM's manual load module.

Bottles

Bottles of product can be manually top loaded for low-speed applications.

Rolls of Product

The VV-VLM can handle rolls of product with a variety of pack patterns.

Jars of Product

Minimize capital cost by manually loading jars of product with the VV-VLM.

Miscellaneous Product

Headphones, water filters, and other difficult to handle products can be top loaded.
