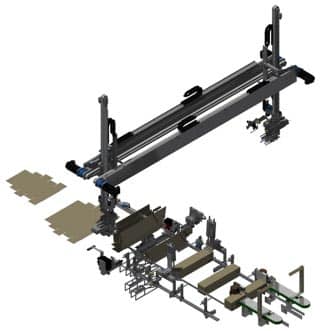

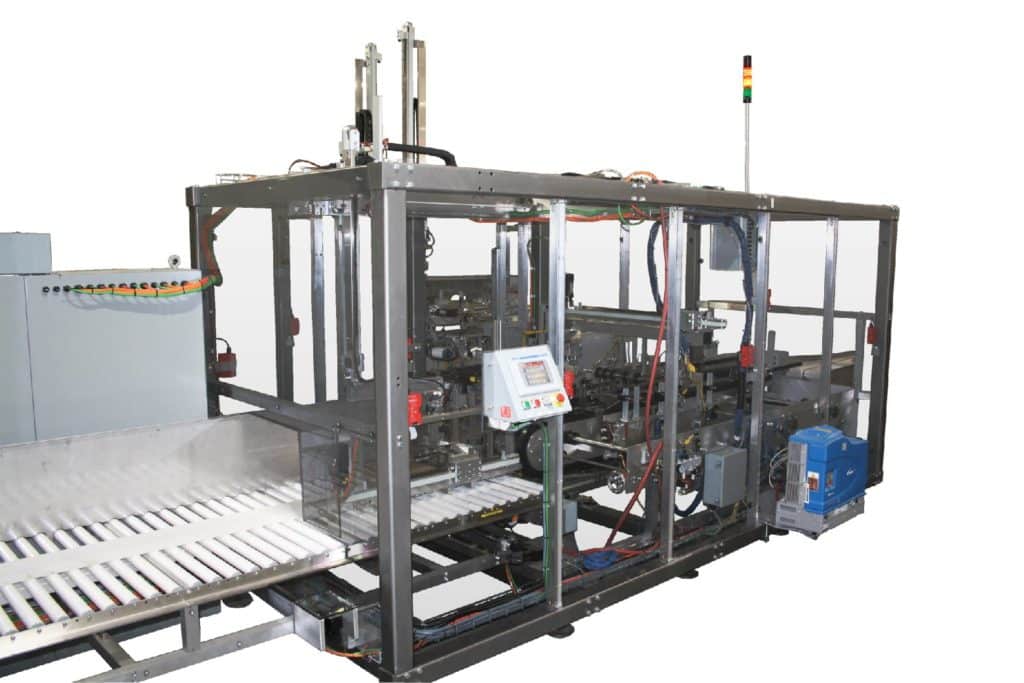

The CP-WCP – Wrap Around Case Packer uses AFA’s innovative gantry robot case erector system and Flat Stack Magazine to erect the wrap-around cases. This system also includes servo- driven changeover technology for the case magazine. Operators simply have to place a stack of wrap-around cases on the magazine, and the system will automatically adjust to the different sizes. Several support systems can be added to the CP-WCP including, labelers, ink printers, bar code readers, tray denestors, and much more. A heavy duty frame allows for 24/7 operation and long machinery life. Allen Bradley ControlLogix PLC and Servos are standard on the CP-WCP.

The CP-WCP can also feature optional equipment such as VPNs for remote access, extended case magazines to limit operator intervention, and dual gantry robots to increase overall speed. Typical applications on the CP-WCP include bottles, canisters, cartons, flow-wrap packages and tubes.


Key Features

Gantry Robot Case Erector

Ensures positive picking and erecting.

Customized Infeed Systems

Innovative Infeed System for this application denested support trays, picked and placed booklets and handled filters and then end load all three items on one compact system.

Flat Stack Magazine™

Eliminates tabs and pins on the magazine for fast repeatable changeover with no tweaking or adjustments.

Intuitive Allen Bradley PanelView HMI

Intuitive screens allow access to servo motor control, recipe changes, machine operation statistics and more.

Wrap Around Case Closing System

Positive wrap around case closing system with Nordson ProBlue Adhesive System.

Optional Features

Optional Support Equipment

Bar code readers, labellers, ink jet printers and much more can be added.

Vision Camera to conform product orientation

To ensure product is correctly oriented before loading into cases.

Customized Infeed Conveyors

Customized infeed conveyors to handle multiple product types.

Virtual Private Network

Allow programmers to access the PLC to make necessary changes through a VPN.

All Axis Servo Changeover

Push button servo driven changeover technology allows for extremely quick changeover.


Bottles of Product

Top load or end load bottles of products with the CP-WCP.

Water Filters

Innovative handling system on the CP-WCP to case pack a wide range of water filters.

Rolls of Product

End load rolls of product with various diameters.

Cartons of Product

Can easily be end loaded by the CP-WCP.

Jars of Product

End loaded with unique accumulate, side shift and load autoload module.
