The MK-CTP – Intermittent Motion Tray Loader is a compact and flexible machine. “No Tools” fine-tuning, with quick release ratchet handles on key adjustment points, provides quick changeover capabilities. The positive tray or wrap-around case handling capabilities provide high operating efficiencies. Servo controlled on all major drive positions maximizes up-time and minimizes maintenance and machine downtime. The MK-CTP can handle a wide variety of product applications, tray sizes, and pack patterns. Stainless steel construction, U.H.M.W. chain rails, and No Product, No Tray, No Load are standard providing numerous benefits such as long machine life and quiet, efficient operation.

Also, the MK-CTP features excellent product handling capabilities. The tray packer includes a reverse loader to ensure that product does not fall over during product collation. This system is essential when you are collating tall products such as canisters, jars, or cans. Allen Bradley controls and servos are standard on the MK-CTP.


Key Features

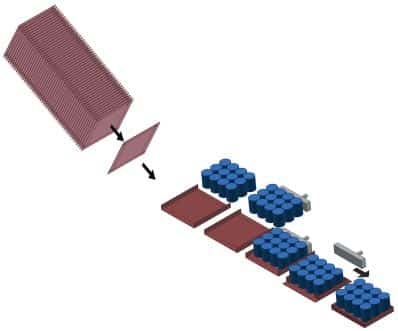

Tray Erecting, Loading, Sealing

The MK-CTP completes all of these processes on one compact machine.

Servo Driven Loading System

Product is loaded via a servo driven loader for accurate positioning and high speeds.

Reciprocating Tray Feeder

Festo Pneumatic Tray Erector for simple, efficient tray erection.

Intuitive Allen Bradley PanelView HMI

Intuitive screens allow access to servo motor control, recipe changes, machine operation statistics and more.

Stainless Steel and Modular Construction

Stainless steel construction increases corrosion resistance and the MK-CTP has a modular design for future retrofits or projects.

Optional Features

Optional Support Equipment

Bar code readers, labellers, ink jet printers and much more can be added.

Quick Changeover Options

Siko counters, ratchet handles, and visual scales can all be added to aid in changeover.

Virtual Private Network

Allow programmers to access the PLC to complete remote troubleshooting activities.

Reverse Loading System

Can be used to stabilize product, such as jars and bottles, during loading.

All Axis Servo Changeover

Push button servo driven changeover technology allows extremely quick changeover.


Bottles of Product

The MK-CTP provides a compact solution for bottles of product.

Jars of Product

Can easily be collated and packaged with the MK-CTP.

Tubs of Product

Can easily be collated and packaged with the MK-CTP.

Cartons of Product

Package multipacks of cartons with the MK-CTP.

Canisters of Product

The MK-CTP has been engineered to handle canisters of product at high efficiency rates.
